Projected Capacitive & Infrared Touch Panels

Advanced Multi-Touch Solutions (PCAP & IR)

Designed for Industrial HMI, Medical, and Self-Service Kiosks

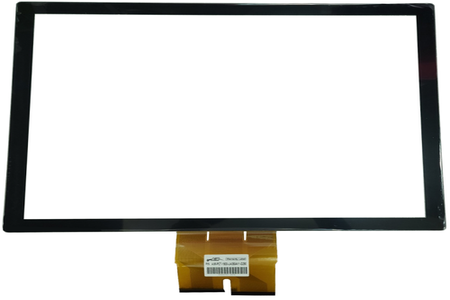

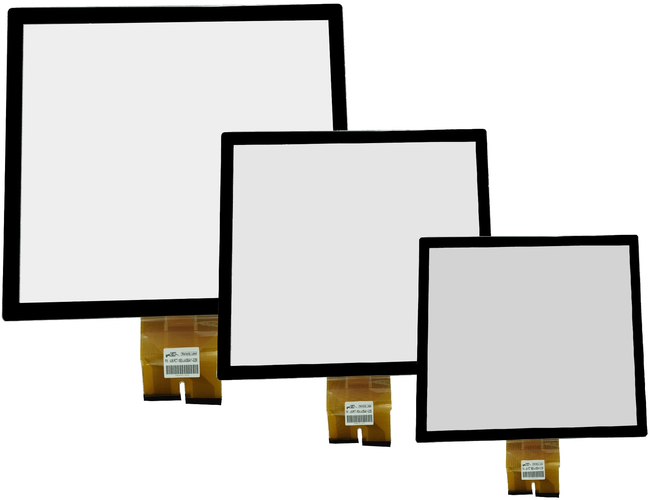

Projected Capacitive (PCAP)

AiM Touch Projected Capacitive touch sensors detect touch through the electrical properties of the human body, supporting rapid multi-touch and gesture control (zoom, pinch, rotate). Our standard modules are USB HID-Digitizer compliant (Plug-and-Play for Windows/Linux/Android).

Industrial Features: We offer ruggedized solutions with IP65 water resistance and optional Cover Glass treatments (Anti-Glare / Anti-Fingerprint). Our firmware can be tuned to support thick glove operation and water rejection, ensuring reliability in harsh factory environments.

Infrared (IR)

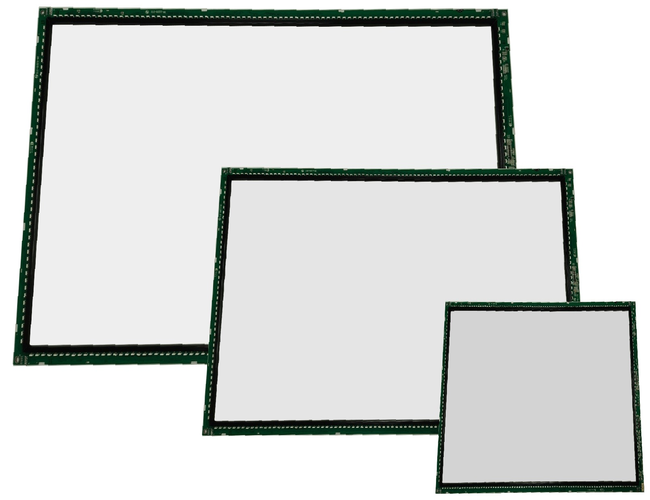

Infrared Ray (IR)

Our IR touch frames feature ultra-narrow bezels (only 21mm width), offering high compatibility and easy integration. With support for up to 32 touch points and sizes up to 130 inches.

Applications: Ideal for Interactive Whiteboards, Digital Signage, and Outdoor Kiosks. IR technology works with any object (gloved finger, stylus) and is immune to surface contaminants and sunlight interference.

Datasheets
PCAP Touch Panel Structure Diagram

Projected Capacitive (PCAP) Specifications

Size (Inch)
Model No.
Outline Dimension (mm)
Active Area (mm)
7"
162.48*105.04
153.4*92.44
7"
164.48*99.08
155.08*86.92
8"
171.66*132.92
163*122.5
10.1"
231.46*148.98
217.96*136.6
10.1"
235.56*139.8
225*127.2
10.2"
235*149.52
222.7*132.42
10.4"
225.4*175.12
212.8*160.2
12.1"
259.76*202.34
248*186.5
12.1"
276.2*181.4
263.2*165.4
14"
325.63*195.93
311.39*176.2
15"
322.96*245.4
305.3*229.6
15.6"
359.44*211.79
345.56*194.99
17"
356.32*287.17
338.92*271.34
17.3"
401.01*235.06
383.29*216.21
18.5"
426*247.28
410.8*231.4
19"
393.20*316.34
376.32*301.06
19"
427.12*274.7
411.4*257.5
19.5"
451.04*259.08
436.88*240.68
21.5"
494.28*286.28
477.64*269.11
23.8"
548.24*316.87
528.44*297.86
24"
549.24*317.47
532.36*299.89
27"
621.88*368.15
600.88*339.31

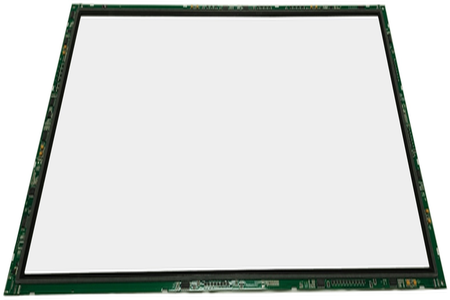

Infrared Touch Frame Structure

Infrared (IR) Specifications

Size (Inch)
Model No.
Outline Dimension (mm)
Active Area (mm)
7"
189.3*128.3
155.3*94.3
8.4"
208*165
174*131
10.4"
247*194
213*160
12.1"
281.5*220
247.5*186
15"
336.7*260.7
306.1*230.1
17"
370.6*302.6
340*272
18.5"
458*278
412*232
19"
408.6*333.6
378*303
21.5"
529*321
479*271
23.8"
565.2*334.2
529*298
24"
579*347
533*301
32"
745.7*440.3
699.7*394.3
42"
978.2*571.3
932.2*525.3
46"
1066.1*620.7
1020.1*574.7
55"
1257.6*728.4
1211.6*682.4
65"
1476.5*851.5
1430.5*805.5

OEM / ODM services available for custom sizes, FPC tail design, and High-Brightness / Wide-Temperature specifications.

Projected Capacitive Touch Panel (PCAP)
Infrared Touch Frame

Frequently Asked Questions (FAQ)

Q: Can AiM Touch panels work with gloves?

A: Yes. Our Projected Capacitive (PCAP) controllers can be tuned to support operation with various types of gloves, including thick industrial and medical gloves.

Q: Are your touch screens waterproof?

A: Our PCAP touch solutions are designed to meet IP65 standards and feature advanced water rejection algorithms, preventing false touches from water droplets or spills.

Q: What is the lead time for custom samples?

A: Generally, custom PCAP sensor samples (including Cover Glass customization) take about 2-4 weeks, depending on the complexity of the design (e.g., AG/AR coating requirements).
