Resistive Touch Panels (RTP)

4-Wire & 5-Wire Analog Resistive Technology

Reliable, Glove-Friendly, and Cost-Effective Solutions

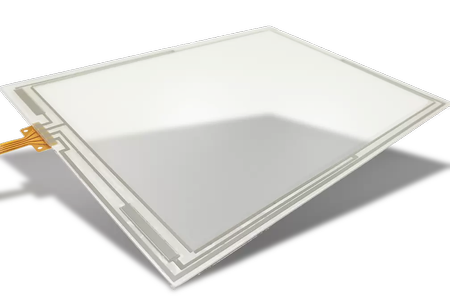

4-Wire Resistive Touch Panels

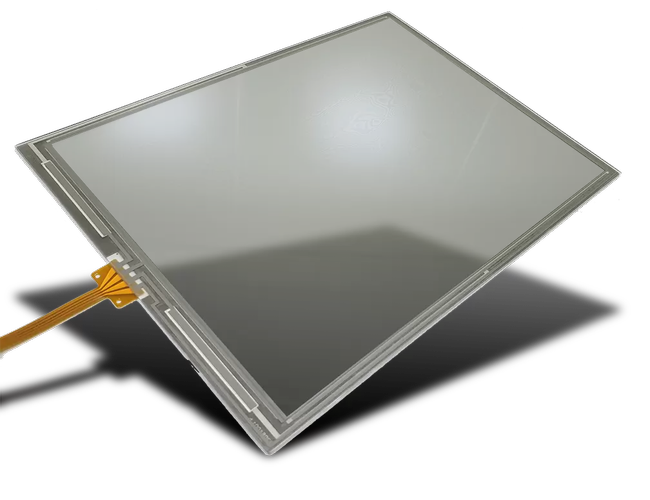

AiM Touch 4-wire analog resistive technology offers an excellent balance of cost and performance. It features low power consumption and easy integration, making it ideal for battery-powered devices.

Applications: Commonly used in Mobile Handhelds, Medical Devices, PDAs, and consumer electronics where lightweight and pressure-sensitive input (stylus support) are required.

5-Wire RTP

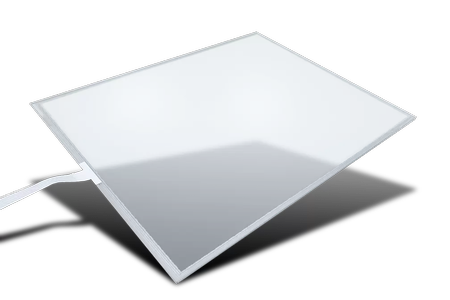

5-Wire Resistive Touch Panels

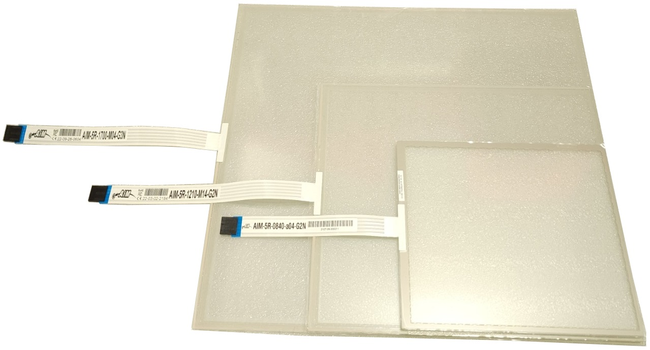

AiM Touch 5-wire resistive panels are engineered for industrial-grade durability. The sensing electrodes are placed on the bottom glass layer, meaning the touch function remains accurate even if the top film is scratched or damaged. Life expectancy exceeds 35 million touches.

Applications: The best choice for high-frequency environments such as POS Systems, Industrial HMI, ATMs, and heavy-duty machinery controls.

Datasheets
4-Wire Resistive Touch Panel Structure Diagram

4-Wire Resistive Specifications

Size (Inch)
Model No.
Outline Dimension (mm)
Active Area (mm)
3.0"
70*55
60*46
3.5"
82.55*65.4
72*54.3
3.6"
62.44*83.8
54.64*72.52
3.6"
83.9*66
71.86*53.27
4"
92.1*70
78.8*59.6
4.3"
102.6*67.56
93.6*56.16
5.4"
122*95
110*82
5.6"
126.5*100
113*85
5.6"
126.5*101.21
114.48*85.91
5.7"
144*104.5
115*86
5.7"
144*104.5
115.2*86.4
5.9"
141*104
120*90
6.1"
149*84.02
138.30*74.04
6.33"
165.1*86.8
147.8*63.5
6.4"
152*115
132*98
6.4"
146*117
131*98
6.4"
145*111
131*99
6.5"
150*116.1
132.48*99.36
6.5"
144*111
131.8*100.7
6.5"
157*90.3
145.7*80.7
6.5"
153*90.3
143.7*80.7
6.8"
164.8*99
150.8*83.7
7"
165*104
152*91
7"
165*104
152*91
7"
164.5*100.3
153*92.04
7"
168*100
154.1*86.6
7"
165*104
152.4*91.44
7"
168*100
154.1*86.6
7.1"
164.9*101.08
157.08*89.58
7.5"
181*143
156*117.5
7.5"
181*143
156*117
7.5"
184*140
152*114
7.5"
179*119
166*99
8"
183*142
162*122
8"
171*142
159*120
8.4"
194*151.5
170.23*127.58
8.4"
189*142
171*128
8.4"
186.2*142
171.9*129.8
8.4"
188.9*141.7
174*131.5
8.8"
197*146
180*132
9.6"
217.5*168.5
196*147
10.1"
234*138
224*126
10.2"
235*146.5
222*133.2
10.4"
237*179
210*158
10.4"
226*178
211*158
10.4"
225.3*174
213*160.2
10.4"
225.3*174
213*160.2
10.4"
224*172
211.2*158.4
10.4"
225.3*174
214.5*165
12.1"
271*205
249*187
12.1"
266*204
249*185
12.1"
262*199
247*185.5
12.1"
263.7*211.7
245*184
15"
320*244
305*229
15"
320*244
303*227
15"
325*249
304*228
15"
330*254
304*228
15"
320*244
305*229
15"
327.1*246.1
303.1*226.1
15"
323.5*245.2
305.2*229.03
15.4"
345*224
331*207
15.6"
363.8*215.92
346.23*195.54
17"
360*290
340*272
17"
360*290
337*270
17"
360*290
340*272
17"
356*286.5
337*269.5
17"
382.2*246.8
367.2*229.5
18"
388*309
356*282.4
18.5"
430.37*254.6
410.8*230.4
19"
400*325
377*302
19"
402.3*323
378.3*303
19"
426.6*272.1
411.2*257.3
19"
394*319
375.3*300
20"
440*352
405*300
20.1"
450*276
436*262
20.1"
459*296
433*270
20.1"
432*331
408*306
22"
493.7*320.1
473.76*296.1
23"
523.4*335
497.4*311.6
25"
640*255
610*228
5-Wire Resistive Touch Panel Structure Diagram

5-Wire Resistive Specifications

Size (Inch)
Model No.
Outline Dimension (mm)
Active Area (mm)
4.77"
117.4*75.4
103.98*62.38
5.7"
126.2*99.4
115.2*86.4
6.3"
172.7*70
150.8*55.76
6.5"
150*115.5
130.6*98.4
6.5"
153*118
133.08*99.96
7"
163*108.4
153*92
7"
168.9*105.9
154.5*93.5
7"
178.3*116.1
154*91.8
7"
164.5*99.5
154.1*86.6
8"
182.6*140.8
164.8*123
8.4"
196.09*149.86
171.4*128.8
8.4"
186.9*142.3
171.4*128.8
9"
211.1*128.5
196.61*114.15
9.7"
210.21*164.25
197.32*148.15
9.7"
212.28*168.64
196.61*147.46
10.1"
234*142
222.72*125.28
10.1"
229.46*149.1
217.56*136.2
10.4"
228.7*173.4
211.58*158.75
10.4"
259.1*206.3
213.1*160.3
12.1"
271.27*205.74
248.87*187.4
12.1"
306.5*244.5
247.5*186
12.1"
277.82*177.9
261.12*163.2
12.1"
261.8*199.8
246.8*185.5
12.1"
268*204
246*185
13.3"
307*182.5
293.42*164.97
15"
332.9*248.9
307.1*231.1
15"
322*245.5
303.5*227.5
15"
354.1*277.1
307.1*231.1
15"
364.7*288.7
304.7*228.7
15"
346*270
305*229
15.4"
345*224
331*207
15.6"
359.3*209.5
344.23*193.54
15.6"
359.1*209.5
344.5*193.7
15.6"
386.81*237.12
345.23*194.54
15.6"
384.5*233.7
344.5*193.7
17"
356*286.5
337*269.5
17"
395*326.4
338.2*270.6
17"
382.2*246.8
367.2*229.5
17.1"
357.8*295.8
339*271.5
17.1"
365.4*290.18
340*272.4
17.3"
398.1*232.8
382.08*214.92
18.5"
429.86*254
409.8*230.4
18.5"
446.05*271.18
410.8*231.4
19"
393.4*316.65
377.3*302.05
19"
426.6*272.1
411.20*257.3
19"
437.4*362.1
377.4*302.1
19.2"
401*323.4
378.5*303
20.1"
430.5*330.5
409*307
21.5"
494.6*291.2
477.24*268.71
21.5"
533.4*324.86
477.64*269.11
21.5"
514.64*310.51
476.64*268.11
21.6"
496.5*292.2
477.5*268.6
22"
493.7*320.1
473.76*296.1
23"
532.8*311.3
509.76*286.74
23.6"
544.2*319.9
521.28*293.22
23.8"
543*317.4
527.2*296.6
23.8"
574*346
528.2*297.6
24"
546.4*352
518.4*324
24"
555.4*322.6
531.4*298.9

OEM / ODM services available for custom sizes, wide-temperature support, and high-brightness enhancements.

4-Wire Resistive Touch Panel
5-Wire Resistive Touch Panel

Frequently Asked Questions (FAQ)

Q: What is the main difference between 4-wire and 5-wire resistive touch panels?

A: 4-wire panels are cost-effective and best for small handheld devices. 5-wire panels offer superior durability because the sensing circuit is on the bottom glass layer, ensuring functionality even if the top surface is scratched. 5-wire is recommended for POS and industrial use.

Q: Can I operate resistive touch screens with gloves?

A: Yes. Resistive technology is pressure-sensitive, meaning it can be operated with bare fingers, gloved hands, stylus pens, or any hard object, making it ideal for medical and industrial environments.

Q: Do you support custom FPC designs?

A: Yes. AiM Touch offers flexible customization services, including FPC tail location and length adjustments, custom dimensions, and surface treatments like Anti-Glare (AG).
